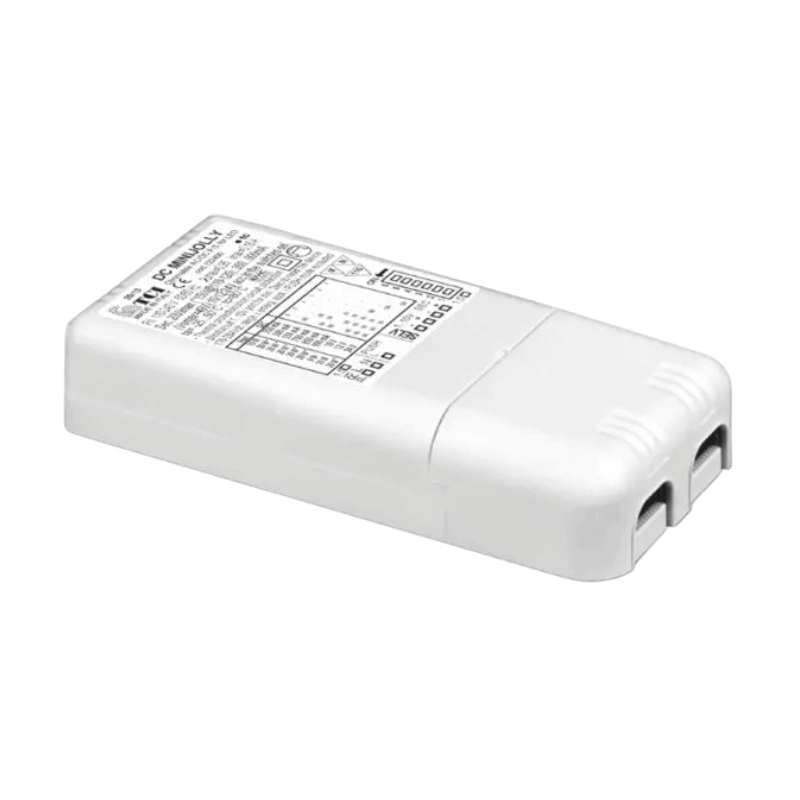

TCI DALI-LED-Konverter 125400 – Mini Jolly, 20W, AM/PWM, Multi, IP20

Produktinformation - Multipower driver supplied with dip-switch for the selection of the output current. - IP20 independent driver, for indoor use (DC MINIJOLLY). - Class II protection against electric shock for direct or indirect contact (DC MINIJOLLY). - Driver for built-in use (DC MINIJOLLY BI). - It can be used for lighting equipment in protection class I and II (DC MINIJOLLY BI). - Active Power Factor Corrector. - Current regulation ±5 % including temperature variations. - Input and output terminal blocks on the same side (wire cross-section up to 1,5 mm2 / AWG15). - Clamping screws on primary and secondary circuits for cables with diameter: PRI 5-8 mm / SEC 3-5 mm (DC MINIJOLLY). - Protections: - against overheating and short circuits - against mains voltage spikes - against overloads - Thermal protection = C.5.a Technische Daten Nennspannung: 220 bis 240V Schutzart: IP20 Dimmung: AM+PWM Abmessungen BxHxT: 108 x 52 x 22mm Frequenz: 50/60 Hz

1 x TCI DALI-LED-Konverter 125400 – Mini Jolly, 20W, AM/PWM, Multi, IP20
